NVR4232-4K

NVR4232-4K

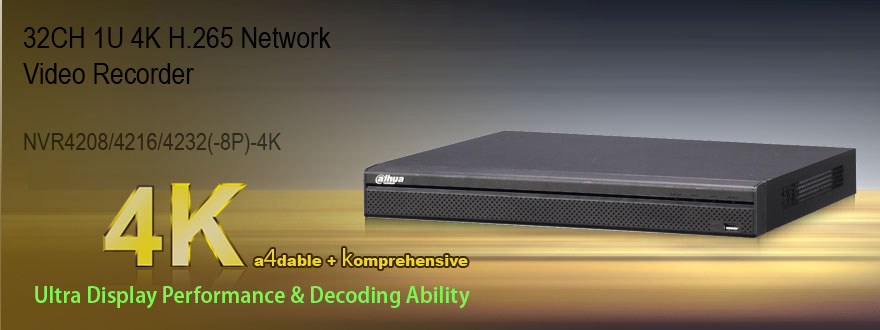

32 Channel 1U 4K&H.265 Lite Network Video Recorder

>Up to 32 channel IP camera input
>H.265/H.264/MJPEG dual codec decoding
>Max 256Mbps incoming bandwidth
>Up to 8ch@1080P(4ch@H.265+4ch@H.264) realtime live-view
>Up to 12Mp resolution preview&playback
>HDMI/VGA simultaneous video output
>8/16 channel synchronous realtime playback, GRID interface
>Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
>ONVIF Version 2.4 conformance
>3D intelligent positioning with Dahua PTZ camera
>Support 2 SATA HDDs up to 12TB, 2 USB(1 USB3.0)
>Support IPC UPnP, 8PoE ports (for -8P model)
>Support P2P, QR code scan & add
>Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS) & Smart Phone(DMSS)

داهوا/DAHUA

NVR4232-4K




System
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
Video
Input 32 channel
Audio
Two-way Talk 1channel Input, 1channel Output, RCA
Display
Interface 1 HDMI, 1 VGA,
Resolution 3840x2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4/8/9/16
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio Compression H.265/H.264/MJPEG
Resolution 12Mp/8Mp/6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1&etc.
Bit Rate 1~ 20Mbps
Record Mode Manual, Schedule(Regular(Continuous), MD), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Record Bit Rate 192Mbps
Video Detection& Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input 8 channel
Relay Output 3 channel
Playback & Backup
Sync Playback 1/4/8/16
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/Internal SATA burner/Network
Network
Ethernet RJ-45 port (10/100M/1000M)
Network Functions HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android, Windows Phone
PoE 8 ports (IEEE802.3at/af) (for -8P model)
Storage
Internal HDD 2 SATA III ports, up to 12TB
Auxiliary Interface
USB Interface 2 ports (1 Rear USB3.0, 1 Front USB2.0)
RS485 1 port, For PTZ Control
RS232 1 port, For PC communication & Keyboard
General
Power Supply Single, DC12V/4A(for non-PoE model) /Single, AC 100~240V, 50/60 Hz(for -8P model)
Power Consumption NVR: 8.7W for non-PoE model(without HDD), 15.2W for PoE model(without HDD) PoE: Max 25.5W for single port(for -8P model),120W in total
Working Environment -10 ~+55°C / 10~90%RH / 86~106kpa
Dimension(W×D×H) 1U, 375mm×282mm×56mm for non-PoE model 375mm×327mm×53mm for PoE model
Weight 1.65KG for non-PoE model(without HDD), 2.65KG for PoE model(without HDD)
Class Title Download
Pdf DH-NVR4208 4216 4232(-8P)-4K (2016-02-02, English)
Class Title Download
Class Title Download
Class Title Download
NVR4232-4K NVR4232-4K
NVR4232-4K NVR4232-4K

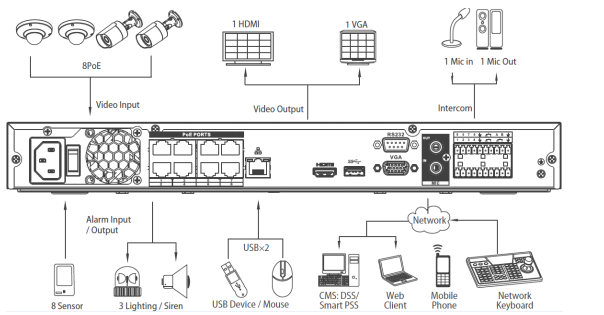

Application Application
