NVR4432-4K

NVR4432-4K

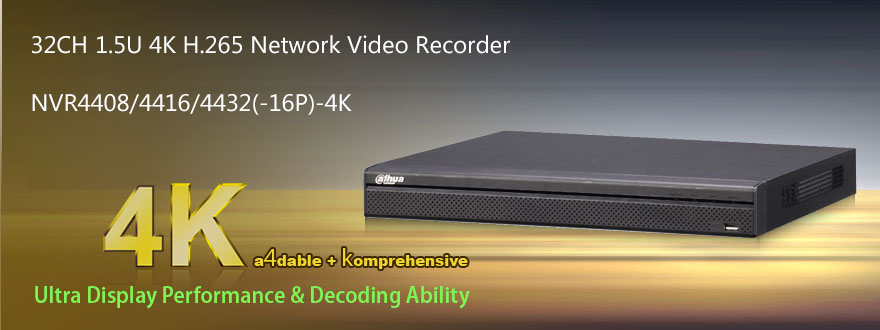

32 Channel 1.5U 4K&H.265 Lite Network Video Recorder

>Up to 32 channel IP camera input
>H.265/H.264/MJPEG dual codec decoding
>Max 256Mbps incoming bandwidth
>Up to 8ch@1080P(4ch@H.265+4ch@H.264) realtime live-view
>Up to 12Mp resolution live-view&playback
>2HDMI/1 VGA simultaneous video output
>8/16 channel synchronous realtime playback, GRID interface
>Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus,   Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
>ONVIF Version 2.4 conformance
>3D intelligent positioning with Dahua PTZ camera
>Support 4 SATA HDDs up to 24TB, 3 USB(2 USB3.0), 1 eSATA port
>Support IPC UPnP, 16PoE ports (for -16P model)
>Support P2P, QR code scan & add
>Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS) & Smart Phone(DMSS)

داهوا/DAHUA

NVR4432-4K




System
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
Video
IP 32 channel
Audio
Two-way Talk 1channel Input, 1channel Output, RCA
Display
Interface 2 HDMI, 1 VGA, 1 TV
Resolution 3840x2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4/8/9/16
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio Compression H.265/H.264/MJPEG
Resolution 12Mp/8Mp/6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1&etc.
Bit Rate 1~ 20Mbps
Record Mode Manual, Schedule(Regular(Continuous), MD), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Record Bit Rate 192Mbps
Video Detection& Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input 16 channel
Relay Output 6 channel
Playback & Backup
Sync Playback 1/4/8/16
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/Network/Internal SATA burner/eSATA Device
Network
Ethernet 2RJ-45 port (10/100M/1000M)
Network Functions HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android, Windows Phone
Storage
Internal HDD 4 SATA ports, up to 24TB
External HDD 1 eSATA port
Auxiliary Interface
USB Interface 3 ports (2 Rear USB3.0,1 Front USB2.0)
RS485 1 port, For PTZ Control
RS232 1 port, For PC communication & Keyboard
General
Power Supply Single, AC 100~240V, 50/60 Hz
Power Consumption NVR: 17W for non-PoE model(without HDD), 26.5W for PoE model(without HDD) PoE: Max 25.5W for single port(for -16P model) , 150W in total
Working Environment -10 ~+55°C / 10~90%RH / 86~106kpa
Dimension(W×D×H) 1.5U, 440mm×413mm×75mm
Weight 4.3KG for non-PoE model(without HDD) 4.65KG for PoE model(without HDD)
