NVR5432-4KS2

NVR5432-4KS2

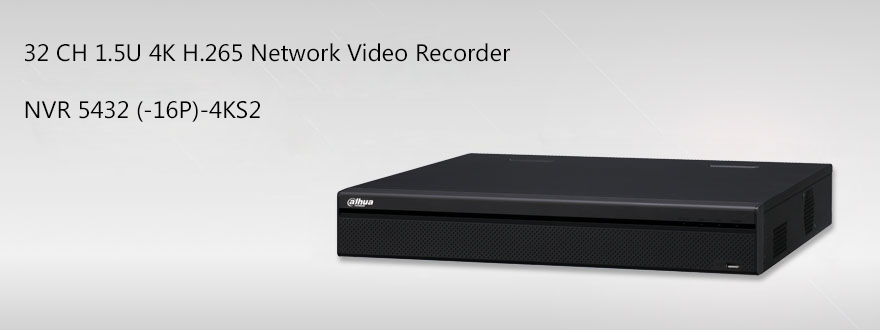

32 Channel 1.5U 4K&H.265 Pro Network Video Recorder

>Up to 32 channel IPC input
>H.265/H.264/MJPEG/MPEG4 codec decoding
>Max 320Mbps incoming bandwidth
>Up to 12Mp resolution preview&playback
>Max 16ch@1080P H.265/H.264 decoding
>2HDMI/VGA simultaneous video output
>4/8/16 channel synchronous realtime playback, GRID interface
>Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
>ONVIF Version 2.4 conformance
>3D intelligent positioning with Dahua PTZ camera
>Support 4 SATA HDDs up to 24TB, 3 USB(2 USB3.0, 1USB2.0)
>Support IPC UPnP, 16PoE ports for PoE model
>Multiple network monitoring: Web, CMS(DSS/Smart PSS) & Mobile phone (DMSS)

DAHUA/داهوا

NVR5432-4KS2




System
Main Processor Quad-core embedded processor
Operating System Embedded LINUX
Display
Interface 2 HDMI (1 HDMI up to 3840x2160), 1 VGA
Resolution 3840x2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4/8/9/16/25/36
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio Compression H.265/H.264/MJPEG/MPEG4
Resolution 12Mp/8Mp/6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1&etc.
Bit Rate 16kbps~ 20Mbps per channel
Record Mode Manual, Schedule(Regular(Continuous), MD), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Record Bit Rate 320Mbps
Video Detection& Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input 16 channel
Relay Output 6 channel
Playback & Backup
Sync Playback 1/4/8/16
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/Network/Internal SATA burner/eSATA Device
Network
Ethernet 2RJ-45 port (10/100M/1000M)
Network Functions HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P
Max. User Access 128 users
Smart Phone iPhone, iPad, Android, Windows Phone
Storage
Internal HDD 4 SATA ports, up to 24TB
External HDD 1 eSATA port
Auxiliary Interface
USB Interface 3 ports (2 Rear USB3.0,1 Front USB2.0)
RS232 1 port, For PC communication & Keyboard
General
Power Supply Single, AC 100~240V, 50/60 Hz
Power Consumption NVR: 16.7W for non-PoE model(without HDD) 17.5W for PoE model(without HDD)
Working Environment -10 ~+55°C / 10~90%RH / 86~106kpa
Dimension(W×D×H) 1.5U, 440mm×413mm×75mm
Weight 4.3KG for non-PoE model(without HDD) 4.65KG for PoE model(without HDD)
Class Title Download
Pdf NVR 5432(-16P)-4KS2 (2016-07-18, English)
Class Title Download
Class Title Download
Class Title Download
NVR5432-4KS2 NVR5432-4KS2
NVR5432-4KS2 NVR5432-4KS2

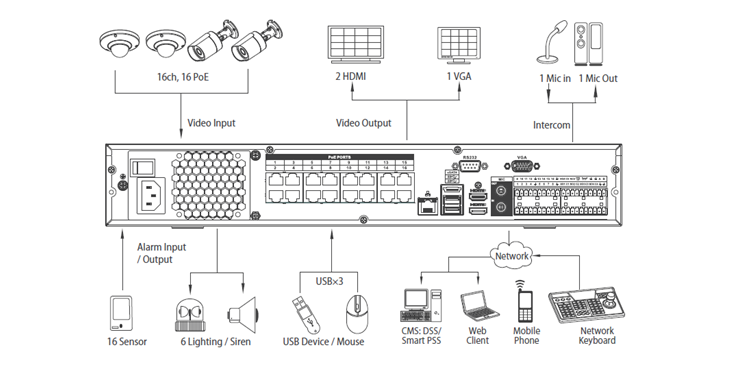

APPLICATIONAL APPLICATIONAL
