HAC-HFW3231E-Z(H)

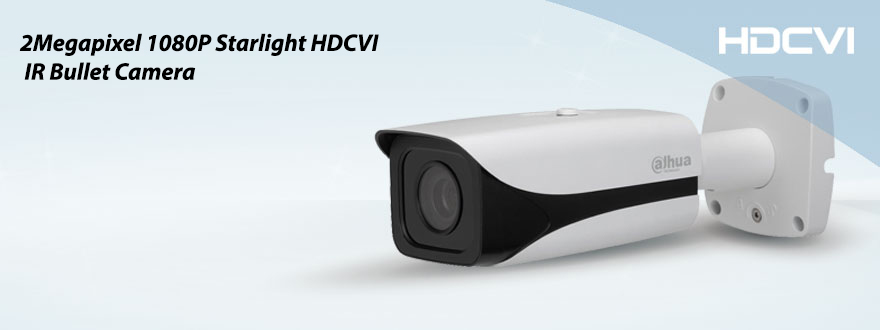

2MP Starlight HDCVI IR Bullet Camera

>1/2.8" 2.1Megapixel CMOS
>25/30fps@1080P, 25/30/50/60fps@720P
>High speed, long distance real-time transmission
>HD and SD dual-output (SDI optional), SD Tester out
>OSD Menu, control over coaxial cable
>120dB True WDR, Day/Night(ICR), AWB, AGC, BLC, 3DNR
>Audio, Alarm, Heater(optional)
>2.7~12mm motorized lens, Auto Iris
>Max. IR LEDs length 100m, Smart IR
>IP67, IK10, AC24V/DC12V

DAHUA/داهوا

HAC-HFW3231E-Z(H)



Interface
RS485 1
Camera
Image Sensor 1/2.7” 2.1Megapixel CMOS
Effective Pixels 1945(H)×1097(V)
Scanning System Progressive
Electronic Shutter 1/3s~1/300,000s
Video Frame Rate 25/50fps@720P; 25fps@1080P
Synchronization Internal
Min. Illumination Color: 0.05Lux@F1.4; B/W: 0.005Lux@F1.4; 0Lux (IR on)
S/N Ratio >65dB(AGC Off)
Video Output 1-channel BNC HDCVI high definition video output & CVBS standard definition video output SD Tester out
Camera Features
Max. IR LEDs Length 100m, Smart IR
Day/Night Auto(ICR) / Color / B/W
Noise Reduction 3D/2D
OSD Menu Support
Lens
Focal Length 2.7~12mm
Angle of View H: 95º~36º
Mount Type Φ14
Lens Type Motorized / Fixed Iris
General
Power Supply AC24V±25% / DC12V±25%
Power Consumption Max 16.6W Max 22.9W (HFW3231E-ZH)
Working Environment -30°C~+60°C / Less than 95%RH (no condensation) -40°C~+60°C / Less than 95%RH (no condensation) (HFW3231E-ZH
Ingress Protection IP67 & IK10
Transmission Distance Over 500m via 75-3 coaxial cable
Dimensions(W×D×H) 273mm×95mm×95mm
Weight 1.2kg
Material Metal
