HAC-HDBW3231E-Z(H)

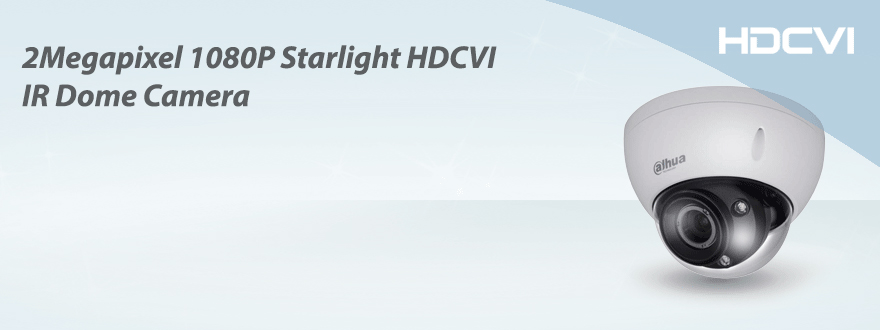

2MP Starlight HDCVI IR Dome Camera

>1/2.8" 2.1Megapixel CMOS
>25/30fps@1080P, 25/30/50/60fps@720P
>High speed, long distance real-time transmission
>HD and SD dual-output (SDI optional), SD Tester out
>OSD Menu, control over coaxial cable
>120dB True WDR, Day/Night(ICR), AWB, AGC, BLC, 3DNR
>Audio, Alarm, Heater(optional)
>2.7~12mm motorized lens, Auto Iris
>Max. IR LEDs length 50m, Smart IR
>IP67, IK10, AC24V/DC12V

DAHUA/داهوا

HAC-HDBW3231E-Z(H)



Camera
Image Sensor 1/2.8" 2.1Megapixel CMOS
Effective Pixels 1945(H)×1097(V)
Electronic Shutter 1.3s~1/30,000s
Video Frame Rate 25/50fps@720P; 25fps@1080P
Synchronization Internal
Min. Illumination 0.05Lux/F1.4, 0Lux IR on
Video Output 1-channel BNC HDCVI high definition video output & CVBS standard definition video output SD Tester out
Camera Features
Max. IR LEDs Length 50m, Smart IR
Day/Night Auto(ICR) / Color / B/W
Noise Reduction 3D/2D
OSD Menu Support
Lens
Angle of View H: 95º~36º
Mount Type Φ14
Lens Type Motorized / Auto Iris
Display
Interface 1 HDMI(up to 3840x2160),1 VGA
PTZ
Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Recording
Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Other
Dimensions 190x113x37mm
General
Power Supply AC24V±25% / DC12V±25%
Power Consumption Max 12.5W Max 21.5W (HDBW3231E-ZH)
Working Environment -30°C~+60°C / Less than 95%RH (no condensation) -40°C~+60°C / Less than 95%RH (no condensation) (HFW3231E-ZH
Ingress Protection IP67 & IK10
Dimensions(W×D×H) Φ159mm×117.9mm
Weight 0.9kg
Material Metal
