Lite Series

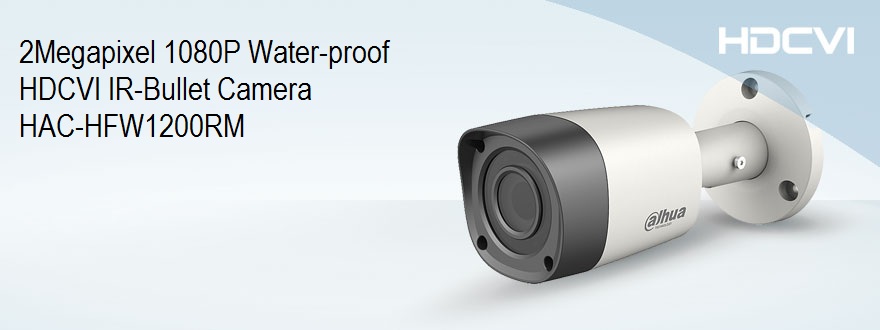

HAC-HFW1200RM

HAC-HFW1200RM

2MP HDCVI IR Bullet Camera

>1/2.7" 2Megapixel CMOS
>25/30fps@1080P
>High speed, long distance real-time transmission
>Day/Night(ICR), AWB, AGC, BLC, 2D-DNR
>3.6mm fixed lens (6mm optional)
>Max. IR LEDs length 20m, Smart IR
>IP67, DC12V

داهوا/DAHUA

HAC-HFW1200RM




Camera
Image Sensor 1/2.7
Effective Pixels 1930(H)×1088(V)
Electronic Shutter 1/50s~1/100,000s
Video Frame Rate 25fps@1080P
Synchronization Internal
Min. Illumination 0.01Lux@F1.2(AGC ON), 0Lux IR on
Video Output 1-channel BNC HDCVI high definition video output
Camera Features
Max. IR LEDs Length 20m, Smart IR
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation No
Noise Reduction 2D
OSD Menu No
Lens
Angle of View H: 89.9º(59.4º)
Mount Type M12
General
Power Supply DC12V±20%
Power Consumption Max 3.5W
Working Environment -30°C~+60°C / Less than 95%RH (no condensation)
Ingress Protection IP67
Transmission Distance Over 500m via 75-3 coaxial cable
Weight 0.3kg
Material Metal
Class Title Download
Pdf HAC-HFW1200RM (2015-08-07, English)
