HAC-HDW2221E

HAC-HDW2221E

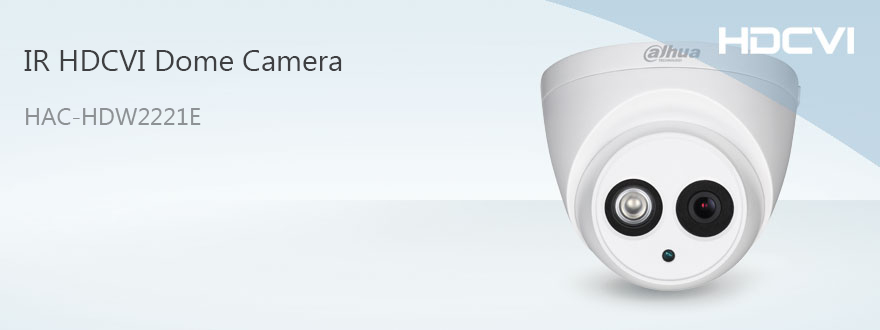

2MP WDR HDCVI IR Eyeball Camera

>1/2.7" 2.1Megapixel CMOS
>25/30fps@1080P, 25/30/50/60fps@720P
>High speed, long distance real-time transmission
>HD and SD dual-output
>OSD Menu, control over coaxial cable
>WDR(120dB), Day/Night(ICR), AWB, AGC, BLC, 3DNR
>3.6mm fixed lens (2.8mm, 6mm, 8mm optional)
>Max. IR LEDs length 50m, Smart IR
>IP67, DC12V

داهوا/DAHUA

HAC-HDW2221E




Camera
Image Sensor 1/2.7” 2.1Megapixel CMOS
Effective Pixels 1928(H)×1088(V)
Electronic Shutter 1/3s~1/300,000s
Video Frame Rate 25/30/50/60fps@720P; 25/30fps@1080P
Synchronization Internal
Min. Illumination 0.03Lux/F2.0, 0Lux IR on
Video Output 1-channel BNC HDCVI high definition video output & CVBS standard definition video output
Camera Features
Max. IR LEDs Length 50m, Smart IR
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation 120dB True WDR
Noise Reduction 3D/2D
OSD Menu Multi-language
Lens
Focal Length 3.6mm (2.8mm, 6mm, 8mm optional)
Angle of View H: 90º(115.6/59.4º/41.4º)
Mount Type M12
General
Power Supply DC12V±25%
Power Consumption Max 5.5W
Working Environment -30°C~+60°C / Less than 95%RH (no condensation)
Ingress Protection IP67
Transmission Distance Over 500m via 75-3 coaxial cable

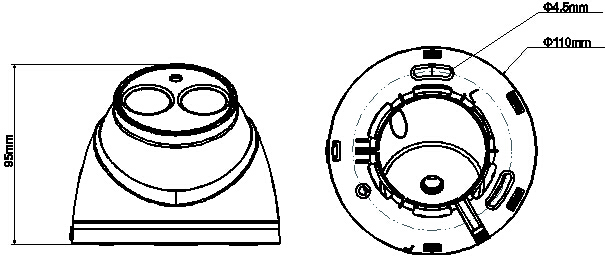

Dimensions(W×D×H) Φ110mm×95mm
Weight 0.3kg
Material Metal (inner core) + Plastic (outside)
Class Title Download
Pdf HAC-HDW2221E (2015-11-21, English)
