Lite Series

HAC-HFW1000RM

HAC-HFW1000RM

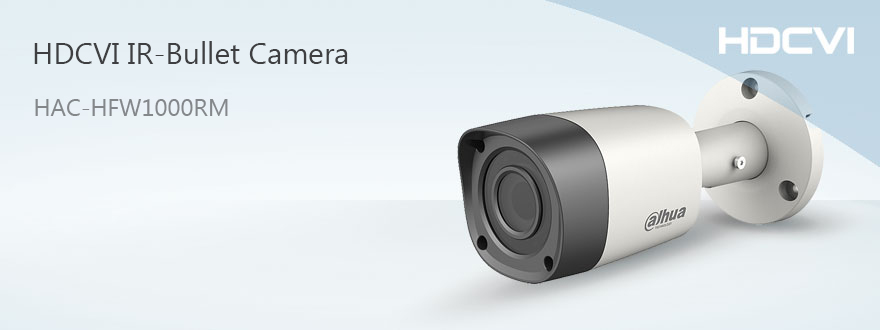

1MP HDCVI IR Bullet Camera

>1Megapixel CMOS
>25/30fps@720P
>Day/Night(ICR), AWB, AGC, BLC, 2DNR
>3.6mm fixed lens (2.8mm optional)
>Max. IR LEDs length 20m, Smart IR
>IP67, DC12V

داهوا/DAHUA

HAC-HFW1000RM




Camera
Image Sensor 1Megapixel CMOS
Effective Pixels 1280(H)×720(V)
Electronic Shutter 1/50s~1/100,000s
Video Frame Rate 25fps@1080P
Synchronization Internal
Min. Illumination 0.05Lux/F2.0, 0Lux IR on
Video Output 1-channel BNC HDCVI high definition video output
Camera Features
Max. IR LEDs Length 20m, Smart IR
Day/Night Auto(ICR) / Color / B/W
Noise Reduction 2D
Lens
Focal Length 3.6mm (2.8mm, 6mm, 8mm optional)
Angle of View H: 58.5º(80.5º)
Mount Type M12
General
Power Supply DC12V±25%
Power Consumption Max 3.5W
Working Environment -30°C~+60°C / Less than 95%RH (no condensation)
Ingress Protection IP67
Transmission Distance Over 800m via 75-3 coaxial cable
Dimensions(W×D×H) Φ70mm×154mm
Weight 0.3kg
Material Metal
