Lite Series

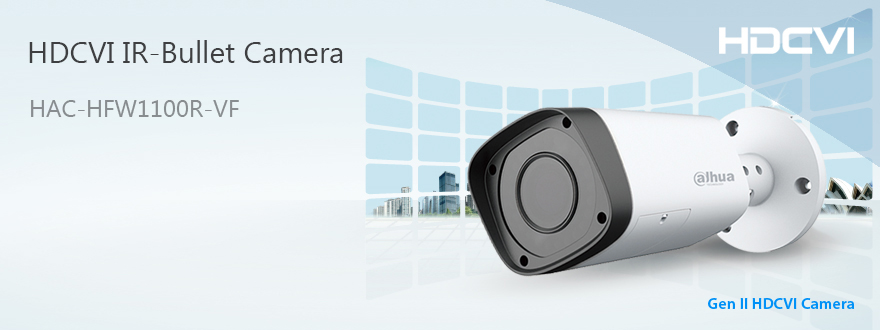

HAC-HFW1100R-VF

HAC-HFW1100R-VF

1MP HDCVI IR Bullet Camera

>1/2.9" 1Megapixel CMOS
>25fps@720P
>High speed, long distance real-time transmission
>Day/Night(ICR), AWB, AGC, BLC, 2DNR
>2.7~12mm vari-focal lens
>Max. IR LEDs length 30m, Smart IR
>IP67, DC12V

داهوا/DAHUA

HAC-HFW1100R-VF




Camera
Image Sensor 1/2.9
Effective Pixels 1280(H)×720(V)
Electronic Shutter 1/50s~1/100,000s
Video Frame Rate 25fps@720P
Synchronization Internal
Min. Illumination 0.05Lux/F1.4, 0Lux IR on
Video Output 1-channel BNC HDCVI high definition video output
Camera Features
Max. IR LEDs Length 30m, Smart IR
Day/Night Auto(ICR) / Color / B/W
Noise Reduction 2D
Lens
Focal Length 2.7~12mm
Angle of View H: 93º~35º
Mount Type Φ14
Lens Type Manual / Fixed Iris
Display
Other
General
Power Supply DC12V±25%
Power Consumption Max 3.2W
Working Environment -30°C~+60°C / Less than 95%RH (no condensation)
Ingress Protection IP67
Transmission Distance Over 800m via 75-3 coaxial cable

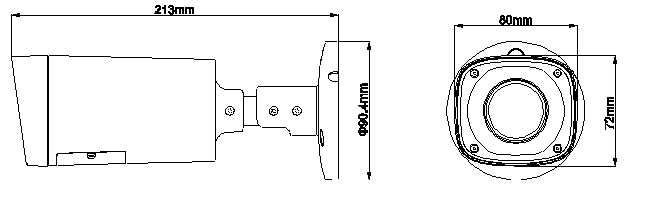

Dimensions(W×D×H) 213mm×80mm×72mm
Weight 0.55kg
Material Metal
Class Title Download
Pdf HAC-HFW1100R-VF (2015-11-16, English)
