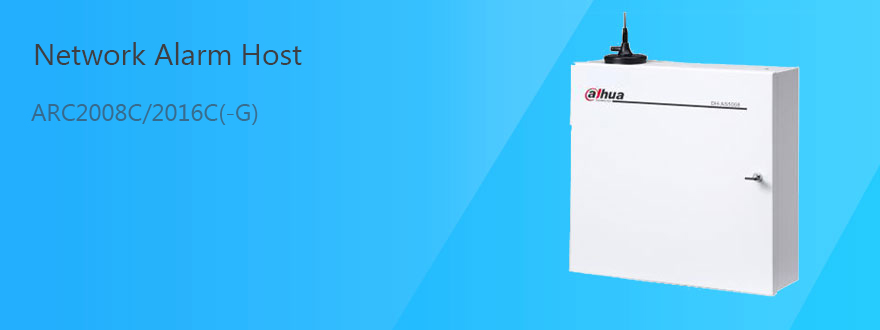

ARC2008C-G

Network Alarm Controller

>8 channel local alarm input, 4 channel alarm output
>Alarm input and output expansion module, max expand 48x
>8-ch alarm keyboard input
>Wireless remote control to arm/disarm
>Reliable power switch, compatible with storage battery
>Mobile alarm arming/disarming
>RS485 control function, support PSTN, IP to upload alarm signal
>2G network alarm function (-G model)

داهوا/DAHUA

ARC2008C-G



Working environment
Working environment Working Temperature-10℃~+55℃
Weight
Weight <3.5Kg
GPRS
GPRS -G model support
Tamper Alarm
Tamper Alarm 1 anti-tamper alarm
RS485
RS485 2-ch,support alarm expansion and alarm keyboard
Cable Network
Cable Network 1-ch 10/100M Ethernet,RJ45
Battery Supply
Battery Supply 12V 7A
Supply
Supply 100-240VAC 47-63 HZ
Overall dimensions

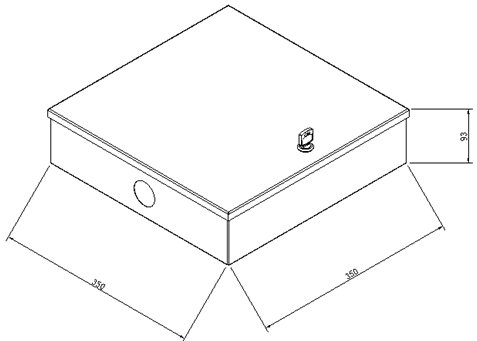

Overall dimensions 350×350×95mm
Installation
Installation Wall mounting
PSTN Alarm
PSTN Alarm Support
Alarm Input
Alarm Input 8-ch local alarm input
Alarm Output
Alarm Output 4-ch local dry node alarm output
Power
Power <10W
Class Title download
pdf ARC2008C-G (2015-06-01, English)
