4 Megapixel

IPC-HFW5421E-Z

IPC-HFW5421E-Z

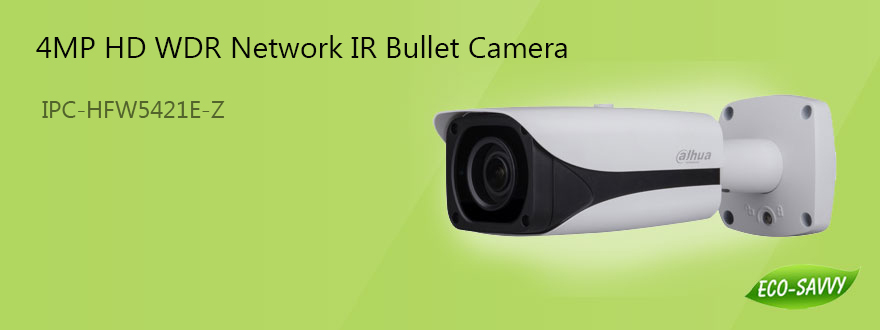

4MP HD WDR Network IR Bullet Camera

>1/3” 4Megapixel progressive scan CMOS
>Support H.264&MJPEG dual codec
>Max 20fps@4Mp(2688×1520),25/30fps@3M(2304x1296)
>Smart Detection supported
>WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>2.7mm ~12mm motorized lens
>2/1 Alarm in/out, 1/1 audio in/out
>Max. IR LEDs Length 50m
>Micro SD memory, IP67, PoE

داهوا/DAHUA

IPC-HFW5421E-Z


Camera
Image Sensor 1/3” 4Megapixel progressive scan CMOS
Effective Pixels 2688(H) x 1520(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/10000
Min. Illumination 0.01Lux/F1.4(Color),0Lux/F1.4(IR on)
S/N Ratio More than 50dB
Video Output 1 port
Video
Compression H.264/H.264H/H.264B/MJPEG
Resolution 4M(2688x1520)/4M(2560x1440)/3M(2304x1296)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
Main Stream 4Mp(1~20fps)/3Mp(1 ~ 25/30fps)
Sub Stream D1(1 ~ 25/30fps)
Third Stream 720P(1-20fps)
Bit Rate H.264: 32K ~ 10Mbps
Corridor Mode Support
Audio
Compression G.711a/ G.711u/AAC
Smart Function (Optional)
Smart detection Tripwire /Intrusion/ Abandoned/Missing /Scene Change/ Audio detect /Face detect
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,802.1x
Compatibility ONVIF,PSIA,CGI
Max. User Access 20users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 128GB
RS485 N/A
Alarm 2/1 channel In/Out
PIR Sensor Range N/A
General
Power Supply DC12V, PoE (802.3af)
Working Environment -40°C~+60°C, Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
