2 Megapixel

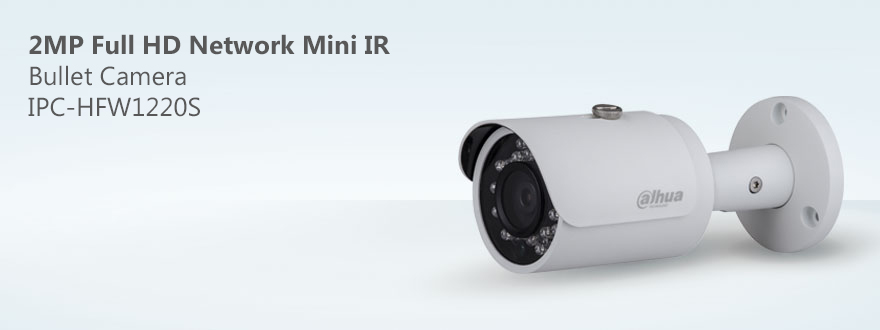

IPC-HFW1220S

IPC-HFW1220S

2MP IR Mini-Bullet Network Camera

>1/2.7” 2Megapixel progressive scan CMOS
>H.264&MJPEG dual-stream encoding
>25/30fps@1080P(1920×1080)
>DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>3.6mm fixed lens (6mm optional)
>Max. IR LEDs Length 30m
>IP67, PoE

داهوا/DAHUA

IP دوربین




Camera
Image Sensor 1/2.7” 2Megapixel progressive scan CMOS
Effective Pixels 1920(H) ´ 1080(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1s~1/100000s
Min. Illumination 0. 025Lux/F2.1(Color), 0Lux/F2.1(IR on)
S/N Ratio More than 50dB
Video Output N/A
Video
Compression H.264/H.264H/H.264B/MJPEG
Resolution 1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480) /CIF(352×288/352×240)
Main Stream 1080P(1 ~ 25/30fps)
Sub Stream D1(1 ~ 25/30fps)
Third Stream 720P(1-20fps)
Bit Rate H.264: 4kbps~8192bps
Corridor Mode Support
Audio
Compression N/A
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility ONVIF, CGI
Max. User Access 20users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot N/A
RS485 N/A
Alarm N/A
PIR Sensor Range N/A
General
Power Supply DC12V, PoE (802.3af)
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Class Title Download
Pdf IPC-HFW1220S (2016-05-31, English)
