4 Megapixel

IPC-HDBW5421E-Z

IPC-HDBW5421E-Z

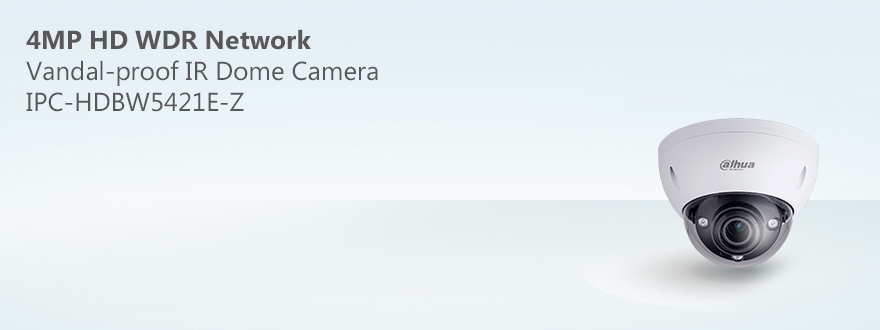

4MP HD WDR Network Vandal-proof IR Dome Camera

>1/3” 4Megapixel progressive scan CMOS
>Support H.264&MJPEG dual codec
>Max 20fps@4Mp(2688×1520),25/30fps@3M(2304x1296)
>Smart Detection supported
>WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>2.7mm ~12mm motorized lens
>1/1 Alarm in/out, 1/1 audio in/out
>Max. IR LEDs Length 50m
>Micro SD memory, IP67, IK10, PoE

داهوا/DAHUA

IPدوربین


Camera
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/10000
S/N Ratio More than 50dB
Video Output 1 port
Camera Features
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC /WDR(120dB)
White Balance Auto/Sunny/Night/Outdoor/Customized
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Video
Compression H.264/H.264H/H.264B/MJPEG
Sub Stream D1/CIF(1 ~ 25/30fps)
Third Stream 720P(1-20fps)
Corridor Mode Support
Audio
Compression G.711a/ G.711u/AAC
Lens
Focus Control Motorized
Lens Type Motorized/ Auto Iris(DC)
Mount Type Board-in Type
Smart Function (Optional)
Smart detection Tripwire /Intrusion/ Abandoned/Missing /Scene Change/ Audio detect /Face detect
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,802.1x
Compatibility ONVIF,PSIA,CGI
Max. User Access 20users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
RS485 N/A
Alarm 1/1 channel In/Out
PIR Sensor Range N/A
General
Power Supply DC12V(AC24V optional), PoE (802.3af)
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10
Class Title Download
Pdf IPC-HDBW5421E-Z (2016-06-14, English)
