3 Megapixel

IPC-HDBW1320E

IPC-HDBW1320E

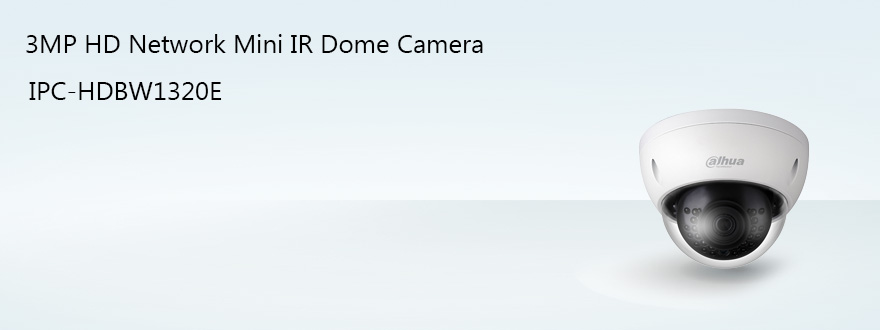

3MP IR Mini-Dome Network Camera

>1/3” 3Megapixel progressive scan CMOS
>H.264&MJPEG dual-stream encoding
>Max 20fps@3M(2048x1536) (2304×1296)&25/30fps@1080P(1920×1080)
>DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>3.6mm fixed lens (2.8mm optional)
>Max. IR LEDs Length 30m
>IP67, IK10, PoE

داهوا/DAHUA

IPC-HDBW1320E




Camera
Image Sensor 1/3” 3Megapixel progressive scan CMOS
Effective Pixels 2304(H)x1536(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1s~1/100000s
Min. Illumination 0.01Lux/F2.0 Color), 0Lux/F2.0(IR on)
S/N Ratio More than 50dB
Video Output N/A
Video
Compression H.264/H.264H/H.264B/MJPEG
Resolution 3M(2048×1536)(2304×1296)/1080P(1920×1080)/720P(1280×720)/ D1(704×576/704×480) /CIF(352×288/352×240)
Main Stream 3M(1 ~ 20fps)/1080P (1 ~ 25/30fps)
Sub Stream D1(1 ~ 25/30fps)
Bit Rate H.264: 4kbps~8192bps
Corridor Mode Support
Camera Features
Max. IR LEDs Length 30m
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 3.6mm (2.8mm, 6mm optional)
Max Aperture F2.0(F2.0/F2.0)
Focus Control Manual
Angle of View H: 81°(92°)
Lens Type Fixed lens
Mount Type Board-in Type
Audio
Compression N/A
Interface N/A
Smart Function (Optional)
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility ONVIF, CGI
Max. User Access 20users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot N/A
RS485 N/A
Alarm N/A
PIR Sensor Range N/A
General
Power Supply DC12V, PoE (802.3af)
Power Consumption <4W(IR on)
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10

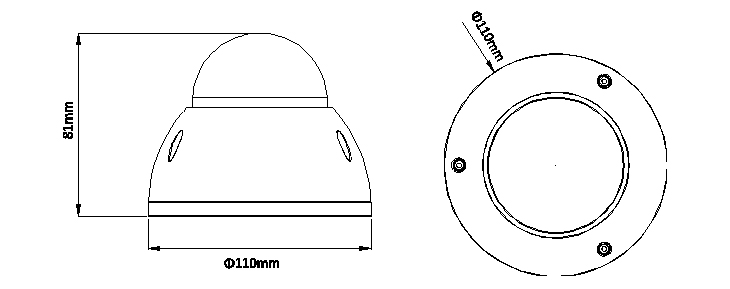

Dimensions Φ110mm×81mm
Weight 0.47kg
