NVR4104H

NVR4104H

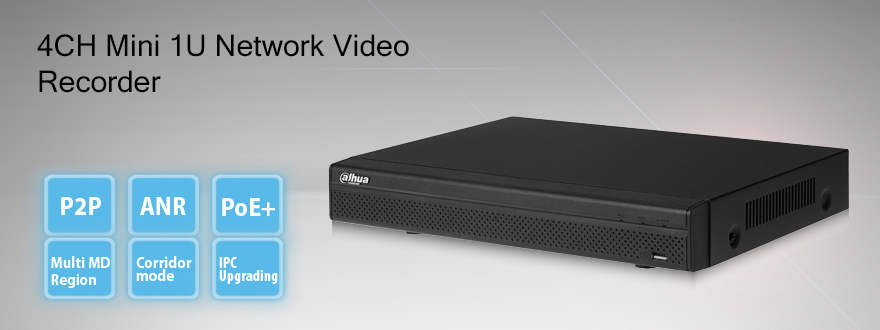

4 Channel Mini 1U Lite Network Video Recorder

>Up to 4 channel IP camera input
>H.264/MJPEG dual codec decoding
>Max 80Mbps incoming bandwidth
>Up to 5Mp resolution preview&playback
>HDMI/VGA simultaneous video output
>All channel synchronous realtime playback, GRID interface
>Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
>ONVIF Version 2.4 conformance
>3D intelligent positioning with Dahua PTZ camera
>Support 1 SATA HDD up to 4TB, 2 USB2.0
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

داهوا/DAHUA

NVR4104




System
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
Video
IP 4 channel
Audio
Two-way Talk 1channel Input, 1channel Output, RCA
Display
Interface 1 HDMI, 1 VGA,
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio Compression H.264/MJPEG
Resolution 5Mp(2560×1920)/3Mp(2048×1536)/1080P(1920×1080)/720P(1280×720)/D1 (704×576/704×480)
Bit Rate 48~ 8192kbps
Record Mode Manual, Schedule(Regular(Continuous), MD), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Record Bit Rate 80Mbps
Video Detection& Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Playback & Backup
Sync Playback 1/4
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/Internal SATA burner/Network
Network
Ethernet 1 RJ-45 port (10/100Mbps)
Network Functions HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android, Windows Phone
Storage
Internal HDD 1 SATA port, up to 4TB
Auxiliary Interface
USB Interface 2 ports (1 Rear), USB2.0
General
Power Supply DC12V/2A
Power Consumption 10W(without HDD)
Working Environment -10 ~+55°C / 10~90%RH / 86~106kpa
Dimension(W×D×H) Mini 1U, 325mm×250mm×55mm
Weight 1.25KG(without HDD)
Class Title Download
Pdf NVR4104/4108/4116H (2016-02-02, English)
Class Title Download
Class Title Download
Class Title Download
NVR4104H NVR4104H
NVR4104H NVR4104H

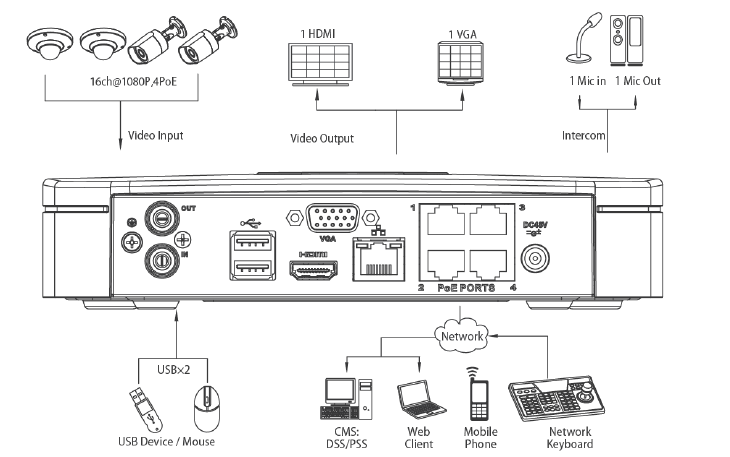

Application Application
