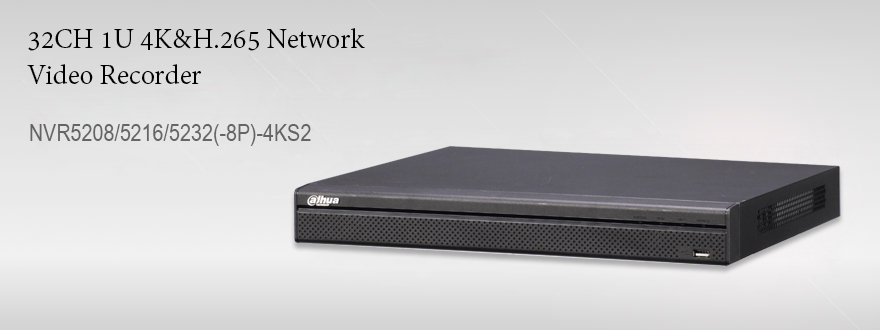

32 Channel 1U 4K&H.265 Lite Network Video Recorder
>Up to 32 channel IPC input
>H.265/H.264/MJPEG/MPEG4 codec decoding
>Max 320Mbps incoming bandwidth
>Up to 12Mp resolution preview&playback
>Max 16ch@1080P H.265/H.264 decoding
>HDMI/VGA simultaneous video output
>4/8/16 channel synchronous realtime playback, GRID interface
>Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
>ONVIF Version 2.4 conformance
>3D intelligent positioning with Dahua PTZ camera
>Support 2 SATA HDDs up to 12TB, 2 USB(1 USB3.0)
>Support IPC UPnP, 8PoE ports for PoE model
>Multiple network monitoring: Web, CMS(DSS/Smart PSS) & Mobile phone (DMSS)
داهوا/DAHUA
NVR5232-4KS2
| System | ||
| Main Processor | Dual-core embedded processor | |
| Operating System | Embedded LINUX | |
| Video | ||
| IP | 32 channel | |
| Audio | ||
| Two-way Talk | 1channel Input, 1channel Output, RCA | |
| Display | ||
| Interface | 1 HDMI (up to 3840x2160), 1 VGA | |
| Resolution | 3840x2160, 1920×1080, 1280×1024, 1280×720, 1024×768 | |
| Display Split | 1/4/8/9/16/25/36 | |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |
| Recording | ||
| Video/Audio Compression | H.265/H.264/MJPEG/MPEG4 | |
| Resolution | 12Mp/8Mp/6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1&etc. | |
| Bit Rate | 16kbps~ 20Mbps per channel | |
| Record Mode | Manual, Schedule(Regular(Continuous), MD), Stop | |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | |
| Record Bit Rate | 320Mbps | |
| Video Detection& Alarm | ||
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips | |
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | |
| Alarm Input | 4 channel | |
| Relay Output | 2 channel | |
| Playback & Backup | ||
| Sync Playback | 1/4/9/16 | |
| Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search | |
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | |
| Backup Mode | USB Device/Internal SATA burner/Network | |
| Network | ||
| Ethernet | RJ-45 port (10/100M/1000M) | |
| Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P | |
| Max. User Access | 128 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| PoE | 8 ports (IEEE802.3at/af) (for -8P model) | |
| Storage | ||
| Internal HDD | 2 SATA port s , u p to 12 TB | |
| Auxiliary Interface | ||
| USB Interface | 2 ports (1 Rear USB3.0, 1 Front USB2.0) | |
| RS232 | 1 port, For PC communication & Keyboard | |
| General | ||
| Power Supply | Single, DC12V/4A(for non-PoE model) /Single, AC 100~240V, 50/60 Hz(for -8P model) | |
| Power Consumption | NVR: 8.7W for non-PoE model(without HDD), 15.2W for PoE model(without HDD) PoE: Max 25.5W for single port(for -8P model),120W in total | |
| Working Environment | -10 ~+55°C / 10~90%RH / 86~106kpa | |
| Dimension(W×D×H) | 1U, 375mm×282mm×56mm for non-PoE model 375mm×327mm×53mm for PoE model | |
| Weight | 1.65KG for non-PoE model(without HDD), 2.65KG for PoE model(without HDD) | |
