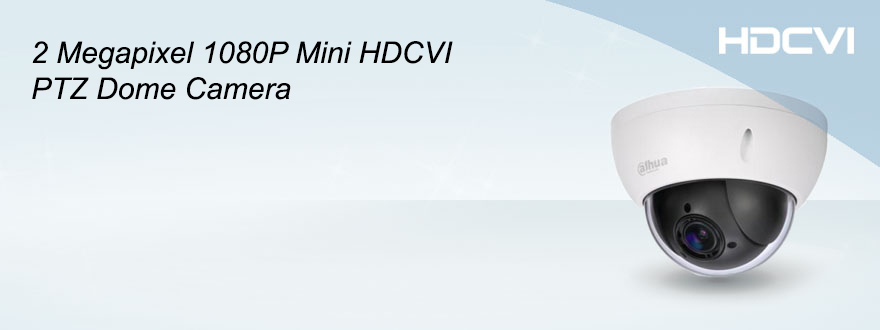

2MP 4x PTZ HDCVI Camera
>Powerful 4x optical zoom
>Max. 25/30fps@1080P, 50/60fps@720P resolution
>DWDR, Day/Night (ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC, BLC
>Max 100°/s pan speed
>Control over coaxial cable, long distance real-time transmission
>HD and SD switchable
>Up to 255 presets, 8 tour
>Support intelligent 3D positioning with DH-SD protocol
>IP66, IK10, OSD
DAHUA/داهوا
SD-22204I-GC
| Camera | ||
| Image Sensor | 1/2.8 | |
| Effective Pixels | 1944(H) x 1092(V), 2 Megapixels | |
| Horizontal Resolution | ≥1000TVL | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | 1/1s ~1/30,000s | |
| Min. Illumination | Color: 0.05 Lux/F1.6, B/W: 0.005Lux/F1.6 | |
| S/N Ratio | More than 55dB | |
| Resolution | 25/30fps@1080P, 25/30/50/60fps@720P | |
| Video Output | 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch) | |
| Camera Features | ||
| Day/Night | Auto(ICR) / Color / B/W | |
| Backlight Compensation | BLC / HLC / DWDR(Digital WDR) | |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual | |
| Gain Control | Auto / Manual | |
| Privacy Masking | Up to 24 areas | |
| Digital Zoom | 16x | |
| Lens | ||
| Focal Length | 2.7mm~11mm(4x Optical zoom) | |
| Max Aperture | F1.6~F3.0 | |
| Focus Control | Auto / Manual | |
| FOV-H | H: 112.5°～39° | |
| Close Focus Distance | 100mm~1000mm | |
| PTZ | ||
| Pan/Tilt Range | Pan: 0° ~ 355° ; Tilt: 0° ~ 90°, auto flip 180° | |
| Manual Control Speed | Pan: 0.1° ~ 100°/s; Tilt: 0.1° ~60°/s | |
| Preset Speed | Pan: 100°/s; Tilt:60°/s | |
| Preset | 255 | |
| PTZ Mode | 8 Tour,Auto Pan | |
| Speed Setup | Human-oriented focal length/ speed adaptation | |
| Power up Action | Auto restore to previous PTZ and lens status after power failure | |
| Idle Motion | Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period | |
| Protocol | DH-SD, Pelco-P/D (Auto recognition) | |
| Auxiliary Interface | ||
| RS485 | 1 | |
| General | ||
| Power Supply | DC12V | |
| Power Consumption | 10W | |
| Working Environment | -20ºC ~ 60ºC / Less than 90% RH | |
| Ingress Protection | IP66 | |
| Vandal Resistance | IK10 | |
| Dimensions | Φ122mm×89mm | |
| Weight | 0.95Kg | |
