All channel 720P
دی وی آر اچ دی داهوا
HDCVI Dahua DVR HCVR5108H
> Up to 4/8 cameras with 1080p realtime preview
> H.264 dual-stream video compression
> HCVR5104/5108H: All channel 720P
> HDMI / VGA simultaneous video output
> 4 channel synchronous realtime playback, GRID interface & smart search
> 3D intelligent positioning with Dahua PTZ dome camera
> Support 1 SATA HDD up to 4TB, 2 USB2.0
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
| System | ||
| Main Processor | Embedded processor | |
| Operating System | Embedded LINUX | |
| Video | ||
| Input | 8 channel, BNC | |
| Standard | PAL(625Line, 50f/s) | |
| Audio | ||
| Input | 1 channel, RCA | |
| Output | 1 channel, RCA | |
| Two-way Talk | Reuse audio input/output channel 1 | |
| Display | ||
| Interface | 1 HDMI, 1 VGA, | |
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768, 800×600 | |
| Display Split | 1/4/8/9 | |
| Privacy Masking | 4 rectangular zones (each camera) | |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |
| Recording | ||
| Video/Audio Compression | H.264 / G.711 | |
| Resolution | 720P(1280×720/1280×600)/960H(960×576/960×480)/D1/4CIF(704×576/704×480) / CIF(352×288/352×240) / QCIF(176×144/176×120) | |
| Main Stream Record Rate | 720P/960H/D1/HD1/2CIF/CIF(1~25/30fps) | |
| Extra Stream Record Rate | CIF(1~25/30fps) | |
| Bit Rate | 48~6144Kb/s | |
| Record Mode | Manual, Schedule(Regular(Continuous), MD), Stop | |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | |
| Video Detection& Alarm | ||
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips | |
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | |
| Playback & Backup | ||
| Sync Playback | 1/4/9 | |
| Search Mode | Time/Date, MD & Exact search (accurate to second) | |
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | |
| Backup Mode | USB Device / Network | |
| Network | ||
| Ethernet | RJ-45 port (10/100M) | |
| Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter | |
| Max. User Access | 128 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Storage | ||
| Internal HDD | 1 SATA port, up to 4TB | |
| Auxiliary Interface | ||
| USB Interface | 2 ports (1 Rear), USB2.0 | |
| RS485 | PTZ control | |
| General | ||
| Power Supply | DC12V/2A | |
| Power Consumption | 10W(without HDD) | |
| Working Environment | -10 ~+55°C / 10~90%RH / 86~106kpa | |
| Dimension(W×D×H) | Mini 1U, 325mm×245mm×45mm | |
| Weight | 1.5KG(without HDD) | |

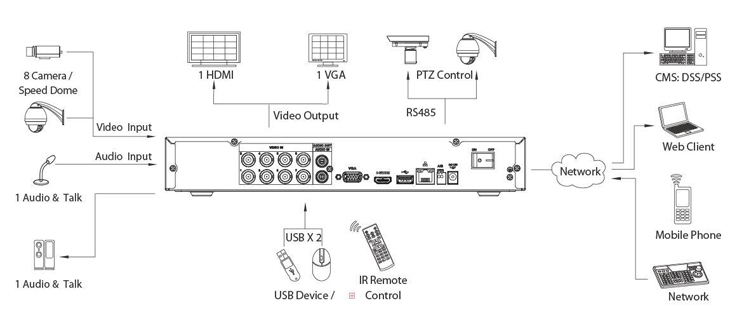

.jpg)
