All channel 720P realtime or 1080P non-realtime recording
دی وی آر HDCVI داهوا Dahua
>Support HDCVI/Analog/IP Video input
>H.264 dual-stream video compression

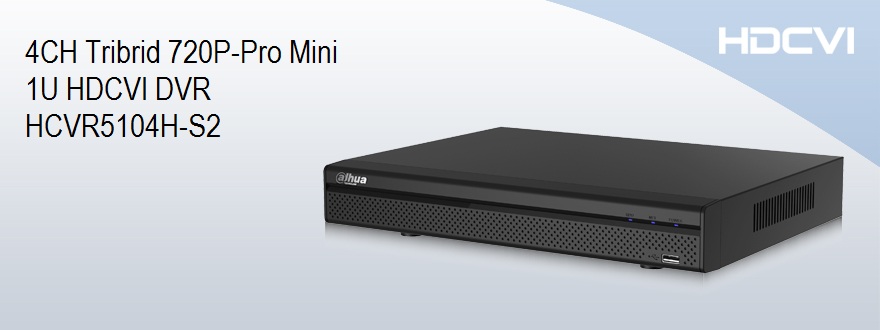

>HCVR5104H-S2: All channel 720P realtime or 1080P non-realtime recording
>HDMI/VGA simultaneous video output
>4 channel synchronous realtime playback, GRID interface & smart search
>Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
>ONVIF Version 2.4 conformance
>Support 1 SATA HDD up to 4TB, 2 USB2.0
>3D intelligent positioning with Dahua PTZ dome camera
>Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)
| System | ||
| Main Processor | Embedded processor | |
| Operating System | Embedded LINUX | |
| Video | ||
| Input | 4 channel, BNC | |
| Analog | PAL | |
| HDCVI | 1080P/720P HDCVI Camera | |
| IP | Support 2ch 1080P/720P IP Camera | |
| Audio | ||
| Input | 1 channel, RCA | |
| Output | 1 channel, RCA | |
| Two-way Talk | Reuse audio input/output channel 1 | |
| Display | ||
| Interface | 1 HDMI, 1 VGA, | |
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768, 800×600 | |
| Display Split | 1/4 | |
| Privacy Masking | 4 rectangular zones (each camera) | |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |
| Recording | ||
| Video/Audio Compression | H.264 / G.711 | |
| Main Stream Record Rate | 1080P(1~15fps)/ 720P/960H/D1 (1~25/30fps) | |
| Extra Stream Record Rate | CIF/QCIF(1~25/30fps) | |
| Bit Rate | 96~4096Kb/s | |
| Record Mode | Manual, Schedule(Regular(Continuous), MD), Stop | |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | |
| Video Detection& Alarm | ||
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips | |
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | |
| Playback & Backup | ||
| Sync Playback | 1/4 | |
| Search Mode | Time/Date, MD & Exact search (accurate to second) | |
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | |
| Backup Mode | USB Device / Network | |
| Network | ||
| Ethernet | RJ-45 port (10/100M) | |
| Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter | |
| Max. User Access | 20 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Storage | ||
| Internal HDD | 1 SATA port, up to 4TB | |
| Auxiliary Interface | ||
| USB Interface | 2 ports (1 Rear), USB2.0 | |
| RS485 | PTZ control | |
| General | ||
| Power Supply | DC12V/2A | |
| Power Consumption | 10W(without HDD) | |
| Working Environment | -10 ~+55°C / 10~90%RH / 86~106kpa | |
| Dimension(W×D×H) | Mini 1U, 325mm×255mm×55mm | |
| Weight | 1.5KG(without HDD) | |
