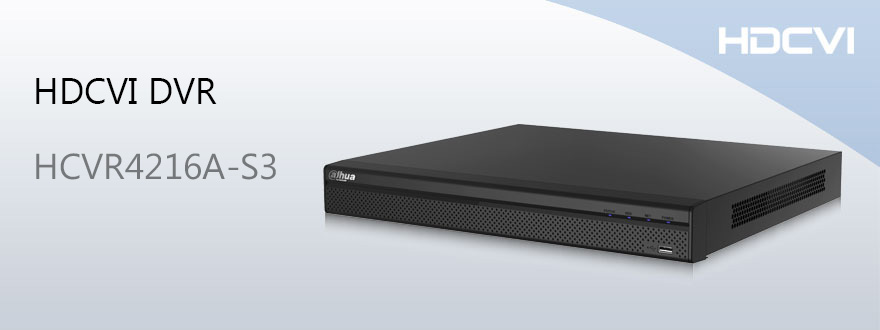

16 Channel Tribrid 720P 1U Digital Video Recorder
>Support HDCVI/Analog/IP Video input
>H.264+/H.264 dual-stream video compression
>HCVR4216A-S3: All channel 1080N/720P recording
>HDMI/VGA simultaneous video output
>16 channel synchronous playback, GRID interface & smart search
>Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
>ONVIF Version 2.4.1 conformance
>Support 2 SATA HDDs up to 12TB, 2 USB2.0
>3D intelligent positioning with Dahua PTZ dome camera
>Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)
داهوا/DAHUA
HCVR4216A-S3
| System | ||
| Main Processor | Embedded processor | |
| Operating System | Embedded LINUX | |
| Video | ||
| Input | 16 channel, BNC | |
| Analog | NTSC/PAL | |
| HDCVI | 1080P/720P HDCVI Camera | |
| IP | 16+2 up to 5Mp | |
| Audio | ||
| Input | 4 channel, RCA | |
| Output | 1 channel, RCA | |
| Two-way Talk | Reuse audio input/output channel 1 | |
| Display | ||
| Interface | 1 HDMI, 1 VGA, | |
| Resolution | 1920× 1080, 1280× 1 024, 1280× 720, 1024× 768 | |
| Display Split | 1/4/8/9/16 | |
| Privacy Masking | 4 rectangular zones (each camera) | |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |
| Recording | ||
| Video/Audio Compression | H.264 / G.711 | |
| Resolution | 1080P(1920× 1080)/1080N(960× 1080)/ 720P ( 1280× 720 ) /960H ( 96 0 × 576/ 960 × 480) / D1 (704 × 576/704 × 480 )/HD1(352× 576/352 × 480) / BCIF(704 × 288/704 × 240 ) CIF(352× 288/352× 240) / QCIF(176× 144/176× 120) | |
| Main Stream Record Rate | 1*1080N(1~25/30fps)+15*(1~12fps)/1*720P(1~25/30fps)+15*(1~15fps) /960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps) | |
| Extra Stream Record Rate | CIF/QCIF(1~7fps) | |
| Bit Rate | 1~4096Kb/s | |
| Record Mode | Manual, Schedule(Regular(Continuous), MD), Stop | |
| Record Interval | 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | |
| Video Detection& Alarm | ||
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips | |
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | |
| Alarm Input | 16 channel | |
| Relay Output | 3 channel | |
| Playback & Backup | ||
| Sync Playback | 1/4/9/16 | |
| Search Mode | Time/Date, MD & Exact search (accurate to second) | |
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | |
| Backup Mode | USB Device/Internal SATA burner/Network | |
| Network | ||
| Ethernet | RJ-45 port (10/100M) | |
| Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P | |
| Max. User Access | 128 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Storage | ||
| Internal HDD | 2 SATA port s , u p to 12 TB | |
| Auxiliary Interface | ||
| USB Interface | 2 ports (1 Rear), USB2.0 | |
| RS485 | 1 port, For PTZ Control | |
| General | ||
| Power Supply | DC12V/ 4A | |
| Power Consumption | 15W(without HDD) | |
| Working Environment | -10 ~+55°C / 10~90%RH / 86~106kpa | |
| Dimension(W×D×H) | 1U, 375mm× 285 mm× 55 mm | |
| Weight | 2.35KG(without HDD) | |
