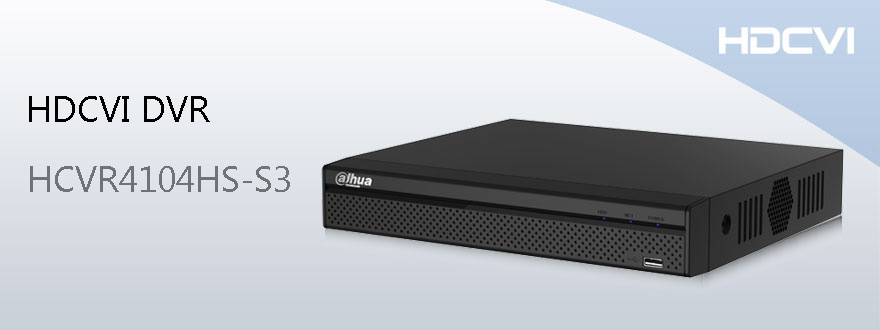

HCVR4104HS-S3

4 Channel Tribrid 720P Compact 1U Digital Video Recorder

>Support HDCVI/Analog/IP Video input
>H.264+/H.264 dual-stream video compression
>HCVR4104HS-S3: All channel 1080N/720P recording
>HDMI/VGA simultaneous video output
>4 channel synchronous playback, GRID interface & smart search
>Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
>ONVIF Version 2.4.1 conformance
>Support 1 SATA HDD up to 6TB, 2 USB2.0
>3D intelligent positioning with Dahua PTZ dome camera
>Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)

داهوا/DAHUA

HCVR4104HS-S3

System
Main Processor Embedded processor
Operating System Embedded LINUX
Video
Input 4 channel, BNC
Analog NTSC/PAL
HDCVI 1080P/720P HDCVI Camera
IP 4+1 up to 2Mp
Audio
Input 1 channel, RCA
Output 1 channel, RCA
Two-way Talk Reuse audio input/output channel 1
Display
Interface 1 HDMI, 1 VGA,
Resolution 1920× 1080, 1280× 1 024, 1280× 720, 1024× 768
Display Split 1/4/6
Privacy Masking 4 rectangular zones (each camera)
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio Compression H.264 / G.711
Resolution 1080P(1920× 1080)/1080N(960× 1080)/ 720P ( 1280× 720 ) /960H ( 96 0 × 576/ 960 × 480) / D1 (704 × 576/704 × 480 )/HD1(352× 576/352 × 480) / BCIF(704 × 288/704 × 240 ) CIF(352× 288/352× 240) / QCIF(176× 144/176× 120)
Main Stream Record Rate 1080P(1~15fps) 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
Extra Stream Record Rate CIF/QCIF(1~15fps)
Bit Rate 1~4096Kb/s
Record Mode Manual, Schedule(Regular(Continuous), MD), Stop
Record Interval 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection& Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Playback & Backup
Sync Playback 1/4
Search Mode Time/Date, MD & Exact search (accurate to second)
Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device / Network
Network
Ethernet RJ-45 port (10/100M)
Network Functions HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P
Max. User Access 128 users
Smart Phone iPhone, iPad, Android, Windows Phone
Storage
Internal HDD 1 SATA port, up to 6TB
Auxiliary Interface
USB Interface 2 ports (1 Rear), USB2.0
RS485 1 port, For PTZ Control
General
Power Supply DC12V/2A
Power Consumption 10W(without HDD)
Working Environment -10 ~+55°C / 10~90%RH / 86~106kpa
Dimension(W×D×H) Compact 1U, 260mm×220mm×40mm
Weight 0.75KG(without HDD)
Class Title download
pdf HCVR4104HS-S3 (2016-04-07, English)
Class Title download
HCVR4104HS-S3 HCVR4104HS-S3
HCVR4104HS-S3 HCVR4104HS-S3

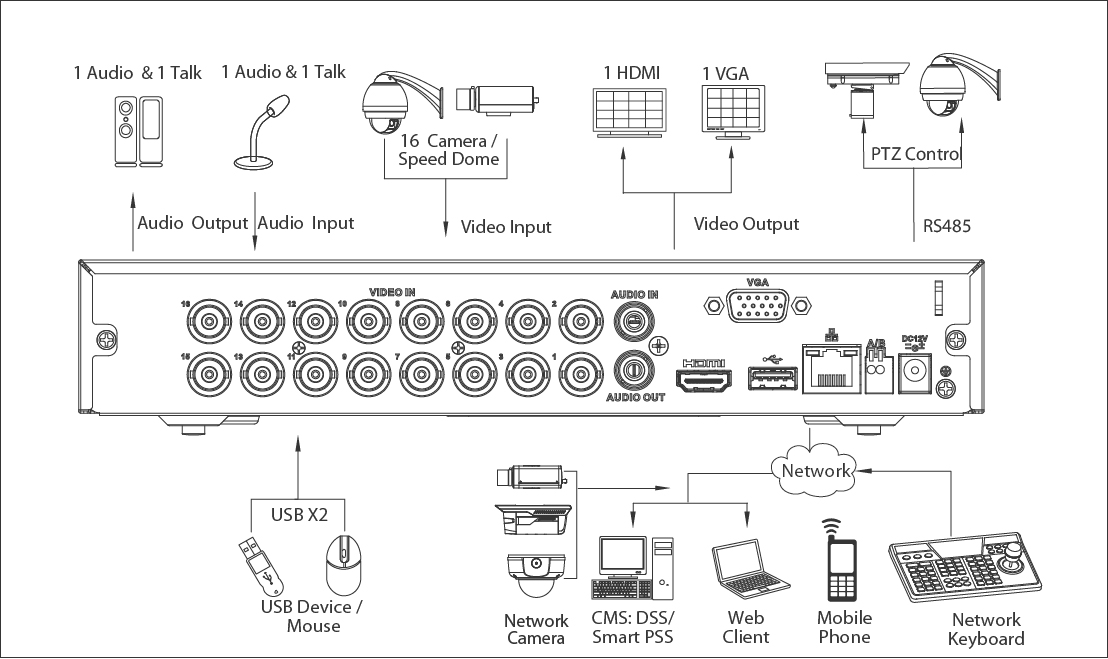

Application Application
