8 Channel Tribrid 720P Compact 1U Digital Video Recorder
>Support HDCVI/Analog/IP Video input
>H.264+/H.264 dual-stream video compression
>HCVR4108HS-S3: All channel 1080N/720P recording
>HDMI/VGA simultaneous video output
>8 channel synchronous playback, GRID interface & smart search
>Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
>ONVIF Version 2.4.1 conformance
>Support 1 SATA HDD up to 6TB, 2 USB2.0
>3D intelligent positioning with Dahua PTZ dome camera
>Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)
داهوا/DAHUA

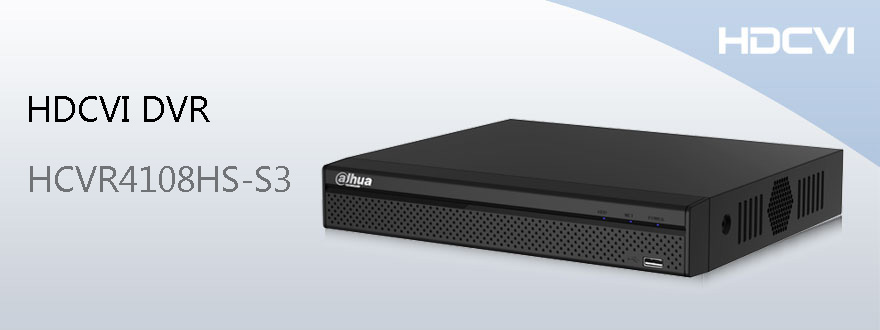

HCVR4108HS-S3
System | ||
Main Processor | Embedded processor | |
Operating System | Embedded LINUX | |
Video | ||
Input | 8 channel, BNC | |
Analog | NTSC/PAL | |
HDCVI | 1080P/720P HDCVI Camera | |
IP | 8+2 up to 5Mp | |
Audio | ||
Input | 1 channel, RCA | |
Output | 1 channel, RCA | |
Two-way Talk | Reuse audio input/output channel 1 | |
Display | ||
Interface | 1 HDMI, 1 VGA, | |
Resolution | 1920× 1080, 1280× 1 024, 1280× 720, 1024× 768 | |
Display Split | 1/4/8/9 | |
Privacy Masking | 4 rectangular zones (each camera) | |
OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |
Recording | ||
Video/Audio Compression | H.264 / G.711 | |
Resolution | 1080P(1920× 1080)/1080N(960× 1080)/ 720P ( 1280× 720 ) /960H ( 96 0 × 576/ 960 × 480) / D1 (704 × 576/704 × 480 )/HD1(352× 576/352 × 480) / BCIF(704 × 288/704 × 240 ) CIF(352× 288/352× 240) / QCIF(176× 144/176× 120) | |
Main Stream Record Rate | 1*1080N(1~25/30fps)+15*(1~12fps)/1*720P(1~25/30fps)+15*(1~15fps) /960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps) | |
Extra Stream Record Rate | CIF/QCIF(1~7fps) | |
Bit Rate | 1~4096Kb/s | |
Record Mode | Manual, Schedule(Regular(Continuous), MD), Stop | |
Record Interval | 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | |
Video Detection& Alarm | ||
Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips | |
Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | |
Playback & Backup | ||
Sync Playback | 1/4/9 | |
Search Mode | Time/Date, MD & Exact search (accurate to second) | |
Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | |
Backup Mode | USB Device/Internal SATA burner/Network | |
Network | ||
Ethernet | RJ-45 port (10/100M) | |
Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P | |
Max. User Access | 128 users | |
Smart Phone | iPhone, iPad, Android, Windows Phone | |
Storage | ||
Internal HDD | 1 SATA port, up to 6TB | |
Auxiliary Interface | ||
USB Interface | 2 ports (1 Rear), USB2.0 | |
RS485 | 1 port, For PTZ Control | |
General | ||
Power Supply | DC12V/2A | |
Power Consumption | 10W(without HDD) | |
Working Environment | -10 ~+55°C / 10~90%RH / 86~106kpa | |
Dimension(W×D×H) | Compact 1U, 260mm×220mm×40mm | |
Weight | 0.75KG(without HDD) |
