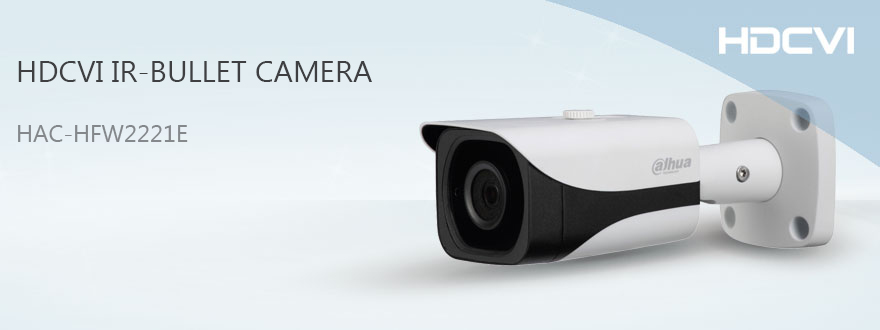

2MP WDR HDCVI IR Bullet Camera
>1/2.7" 2.1Megapixel CMOS
>25/30fps@1080P, 25/30/50/60fps@720P
>High speed, long distance real-time transmission
>HD and SD dual-output
>OSD Menu, control over coaxial cable
>WDR(120dB), Day/Night(ICR), AWB, AGC, BLC, 3DNR
>3.6mm fixed lens (6mm, 8mm optional)
>Max. IR LEDs length 40m, Smart IR
>IP67, DC12V
داهوا/DAHUA
HAC-HFW2221E
| Camera | ||
| Image Sensor | 1/2.7” 2.1Megapixel CMOS | |
| Effective Pixels | 1928(H)×1088(V) | |
| Electronic Shutter | 1/3s~1/300,000s | |
| Video Frame Rate | 25/30/50/60fps@720P; 25/30fps@1080P | |
| Synchronization | Internal | |
| Min. Illumination | 0.03Lux/F2.0, 0Lux IR on | |
| Video Output | 1-channel BNC HDCVI high definition video output & CVBS standard definition video output | |
| Camera Features | ||
| Max. IR LEDs Length | 40m, Smart IR | |
| Day/Night | Auto(ICR) / Color / B/W | |
| Backlight Compensation | 120dB True WDR | |
| Noise Reduction | 3D/2D | |
| OSD Menu | Multi-language | |
| Lens | ||
| Angle of View | H: 90º(59.4º/41.4º) | |
| Mount Type | M12 | |
| General | ||
| Power Supply | DC12V±25% | |
| Power Consumption | Max 5.5W | |
| Working Environment | -30°C~+60°C / Less than 95%RH (no condensation) | |
| Ingress Protection | IP67 | |
| Transmission Distance | Over 500m via 75-3 coaxial cable | |

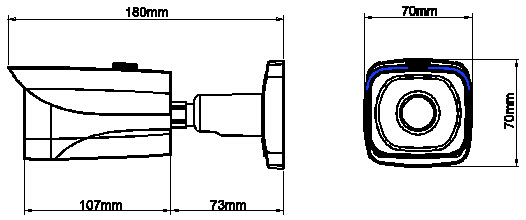

| Dimensions(W×D×H) | 180mm×70mm×70mm | |
| Weight | 0.4kg | |
| Material | Metal | |
