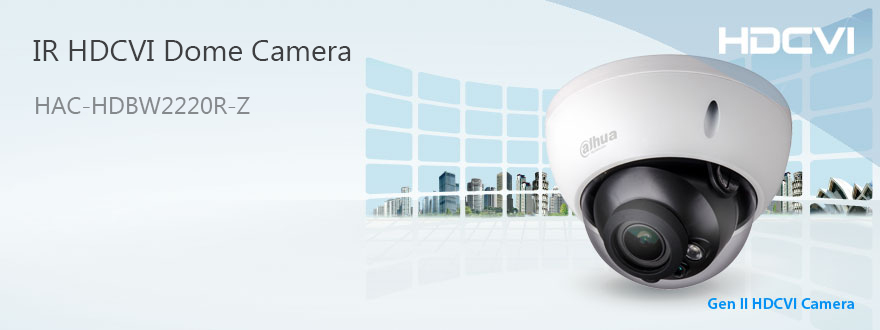

HAC-HDBW2220R-Z

>1/2.8" 2.4Megapixel CMOS
>25fps@1080P, 25/30/50/60fps@720P
>High speed, long distance real-time transmission
>HD and SD switchable
>OSD Menu, control over coaxial cable
>DWDR, Day/Night(ICR), AWB, AGC, BLC, 3DNR
>2.7~12mm motorized lens
>Max. IR LEDs length 30m, Smart IR
>IP67, IK10, DC12V

داهوا/DAHUA

HAC-HDBW2220R-Z

Camera
Image Sensor 1/2.8” 2.4Megapixel CMOS
Effective Pixels 1984(H)×1225(V)
Electronic Shutter 1/3s~1/100,000s
Video Frame Rate 25/30/50/60fps@720P; 25/30fps@1080P
Synchronization Internal
Min. Illumination 0.05Lux/F1.4, 0Lux IR on
Video Output 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)
Camera Features
Max. IR LEDs Length 30m, Smart IR
Day/Night Auto(ICR) / Color / B/W
Noise Reduction 3D/2D
OSD Menu Support
Lens
Angle of View H: 99º~34º
Mount Type Φ14
Lens Type Motorized / Fixed Iris
General
Power Supply DC12V±20%
Power Consumption Max 8.6W
Working Environment -30°C~+60°C / Less than 95%RH (no condensation)
Ingress Protection IP67 & IK10
Transmission Distance Over 500m via 75-3 coaxial cable

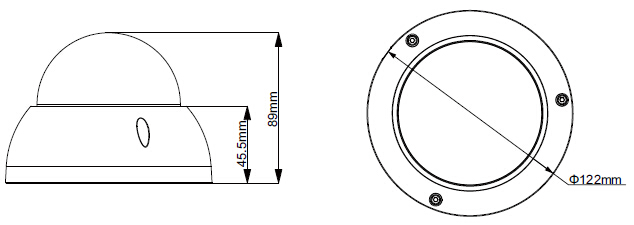

Dimensions(W×D×H) Φ122mm×89mm
Weight 450g
Material Metal
