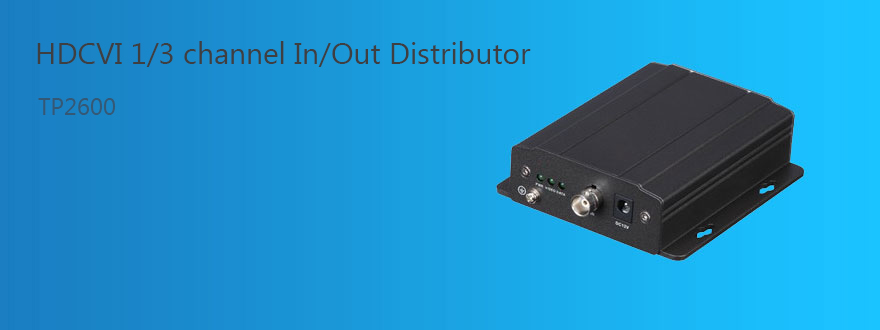

HDCVI Distributor
>Support 1/3 channel In/Out
>Lossless non-compression transmission
>Support video format as 25/30/50/60fps@720P & 25/30fps@1080P
>UPnP, easy installation
>LED indicators
>Wide-range temperature application: -40ºC ~75ºC
داهوا/DAHUA
TP2600
| Physical Port | ||
| BNC Port | 4*BNC ports (1/3 channel In/Out) | |
| Other | ||
| Indicator | Video indicator, power indicator, data indicator | |
| Power | DC12V 1A | |
| Power Consumption | ≤5W | |
| Temperature | -40ºC ~75ºC | |
| Humidity | 10%~90% RH | |
| Unit Weight | 200g | |

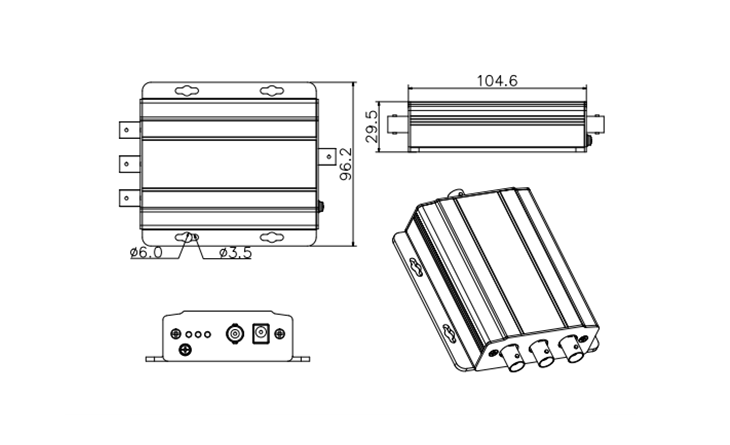

| Dimension | 104.6mm×96.2mm×29.5mm | |
| Installation | Wall mount | |
