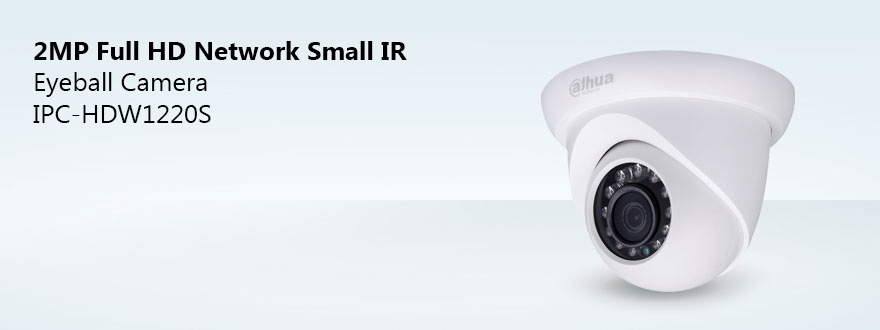

2MP IR Eyeball Network Camera
>1/2.7” 2Megapixel progressive scan CMOS
>H.264&MJPEG dual-stream encoding
>25/30fps@2M(1920×1080)
>DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>3.6mm fixed lens (6mm optional)
>Max. IR LEDs Length 30m
>IP67, PoE
داهوا/DAHUA
IPC-HDW1220S
| Camera | ||
| Video Output | N/A | |
| S/N Ratio | More than 50dB | |
| Electronic Shutter Speed | Auto/Manual, 1s~1/30000s | |
| Scanning System | Progressive | |
| Camera Features | ||
| Day/Night | Auto(ICR) / Color / B/W | |
| Backlight Compensation | BLC / HLC / DWDR | |
| White Balance | Auto/Manual | |
| Gain Control | Auto/Manual | |
| Noise Reduction | 3D | |
| Privacy Masking | Up to 4 areas | |
| Video | ||
| Compression | H.264/H.264H/H.264B/MJPEG | |
| Sub Stream | D1(1 ~ 25/30fps) | |
| Corridor Mode | Support | |
| Lens | ||
| Focus Control | Manual | |
| Lens Type | Fixed lens | |
| Mount Type | Board-in Type | |
| Audio | ||
| Compression | N/A | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Wi-Fi | N/A | |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour | |
| Compatibility | ONVIF, CGI | |
| Max. User Access | 20users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Auxiliary Interface | ||
| RS485 | N/A | |
| Alarm | N/A | |
| PIR Sensor Range | N/A | |
| General | ||
| Power Supply | DC12V, PoE (802.3af) | |
| Working Environment | -30°C~+60°C, Less than 95% RH | |
| Vandal Resistance | N/A | |
