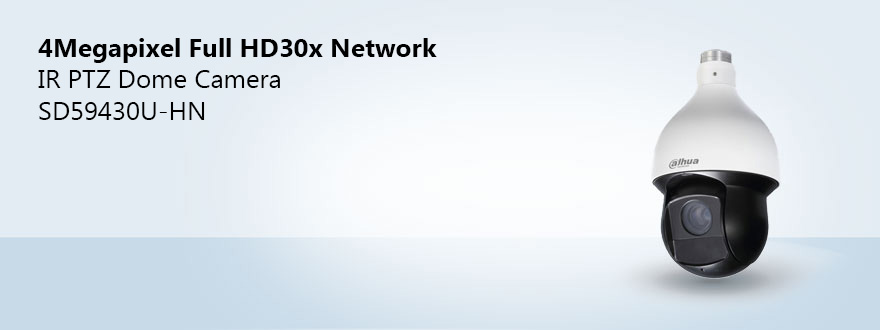

4MP 30x IR PTZ Network Camera
>30x optical zoom
>H.265&H.264 Encoding, Ultra-low bit rate transmission
>Max. 25/30fps @4M(2592×1520) & 50/60fps @1080P resolution
>WDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>Max 400°/s pan speed, 360° endless pan rotation
>Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
>Built-in 2/1 alarm in/out
>Support intelligent 3D positioning with DH-SD protocol
>Micro SD memory, IP66, POE+
>IR Distance up to 100m
داهوا/DAHUA
SD59430-HN
| Camera | ||
| Image Sensor | 1/3”Color CMOS | |
| Effective Pixels | 2688(H) x 1520(V) 4Mp | |
| Schedule Setting | Progressive | |
| Electronic Shutter Speed | 1/3 ~ 1/30,000s | |
| Min. Illumination | Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6 | |
| S/N Ratio | More than 55dB | |
| Video Output | BNC(1.0Vp-p/75Ω), PAL / NTSC | |
| Intelligent Function | ||
| Face Detection | Support | |
| Camera Features | ||
| Day/Night | Auto(ICR) / Color / B/W | |
| Backlight Compensation | BLC / HLC / WDR | |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual | |
| Gain Control | Auto / Manual | |
| Noise Reduction | Ultra DNR (2D/3D) | |
| Privacy Masking | Up to 24 areas | |
| Digital Zoom | 16x | |
| Video | ||
| Compression | H.265 /H.264 / MJPEG | |
| Resolution | 4M(2592×1520)/3M(2304×1296)/1080P(1920×1080)/ 1.3M(1280×960)/720P(1280×720) / D1(704×576/ 704×480) /CIF | |
| Main Stream | <4M/3M(1~25/30fps)/1080P(1~50/60fps)/1.3M/720P(1~25/30fps) | |
| Sub Stream 1 | D1/CIF(1 ~ 25/30fps) | |
| Sub Stream 2 | 1080P /960P/720P(1 ~ 25/30fps) | |
| Bit Rate | H.265/H.264: 192K ~ 8192Kbps, MJPEG: 192K ~ 2048Kbps | |
| Lens | ||
| Focal Length | 4.5mm ~ 135.0mm (30x Optical zoom) | |
| Max Aperture | F1.6~F4.4 | |
| Focus Control | Auto / Manual | |
| FOV-H | H: 60° ~ 2.2° | |
| Close Focus Distance | 100mm~ 1500mm | |
| Audio | ||
| Compression | G.711a / G.711Mu(32kbps)/ PCM(128kbps) | |
| Interface | 1/1 channel In/Out | |
| PTZ | ||
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180° | |
| Manual Control Speed | Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s | |
| Preset Speed | Pan: 400° /s; Tilt: 300° /s | |
| Preset | 300 | |
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan | |
| Speed Setup | Human-oriented focal length/ speed adaptation | |
| Power up Action | Auto restore to previous PTZ and lens status after power failure | |
| Idle Motion | Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period | |
| IR Distance | 80m (PoE+) 100m (AC24V) | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Protocol | IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x | |
| Compatibility | ONVIF PSIA CGI | |
| Max. User Access | 20 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Auxiliary Interface | ||
| Memory Slot | Micro SD, Max 128GB | |
| Alarm | 2/1 channel In/Out | |
| General | ||
| Power Supply | AC24V, POE plus(802.3at) | |
| Power Consumption | PoE: 13W, 20W (IR on) AC24V: 13W, 23W (IR on) | |
| Working Environment | PoE: -30ºC ~ 60ºC / Less than 90% RH AC24V: -40ºC ~ 70ºC / Less than 90% RH | |
| Ingress Protection | IP66 | |

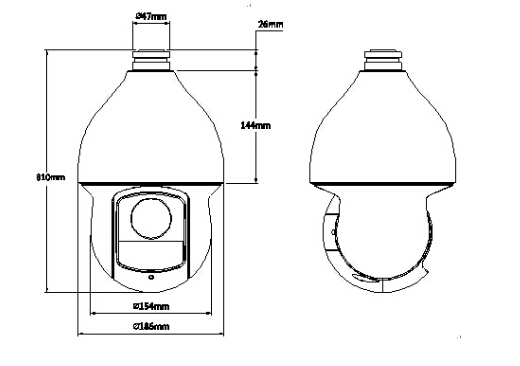

| Dimensions | Φ186.0(mm) x 309(mm) | |
| Weight | 3.5kg | |
