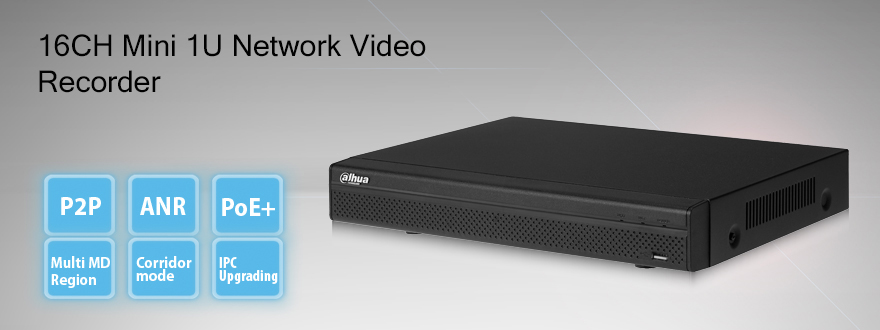

16 Channel Mini 1U Lite Network Video Recorder
>Up to 16 channel IP camera input
>H.264/MJPEG dual codec decoding
>Max 80Mbps incoming bandwidth
>Up to 5Mp resolution preview&playback
>HDMI/VGA simultaneous video output
>All channel synchronous realtime playback, GRID interface
>Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
>ONVIF Version 2.4 conformance
>3D intelligent positioning with Dahua PTZ camera
>Support 1 SATA HDD up to 4TB, 2 USB2.0
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
داهوا/DAHUA
NVR4116H
| System | ||
| Main Processor | Dual-core embedded processor | |
| Operating System | Embedded LINUX | |
| Video | ||
| IP | 16 channel | |
| Audio | ||
| Two-way Talk | 1channel Input, 1channel Output, RCA | |
| Display | ||
| Interface | 1 HDMI, 1 VGA, | |
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768 | |
| Display Split | 1/4/8/9/16 | |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |
| Recording | ||
| Video/Audio Compression | H.264/MJPEG | |
| Resolution | 5Mp(2560×1920)/3Mp(2048×1536)/1080P(1920×1080)/720P(1280×720)/D1 (704×576/704×480) | |
| Bit Rate | 48~ 8192kbps | |
| Record Mode | Manual, Schedule(Regular(Continuous), MD), Stop | |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | |
| Record Bit Rate | 80Mbps | |
| Video Detection& Alarm | ||
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips | |
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | |
| Playback & Backup | ||
| Sync Playback | 1/4/8/16 | |
| Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search | |
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | |
| Backup Mode | USB Device/Internal SATA burner/Network | |
| Network | ||
| Ethernet | 1 RJ-45 port (10/100Mbps) | |
| Network Functions | HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) | |
| Max. User Access | 128 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Storage | ||
| Internal HDD | 1 SATA port, up to 4TB | |
| Auxiliary Interface | ||
| USB Interface | 2 ports (1 Rear), USB2.0 | |
| General | ||
| Power Supply | DC12V/2A | |
| Power Consumption | 10W(without HDD) | |
| Working Environment | -10 ~+55°C / 10~90%RH / 86~106kpa | |
| Dimension(W×D×H) | Mini 1U, 325mm×250mm×55mm | |
| Weight | 1.25KG(without HDD) | |
